Heat Treatment
Renine Metalloy's brand new ultramodern fully-automatic Heat Treatment furnaces provide unrivaled mechanical qualities to the materials. These state-of-the-art Heat Treatment Furnaces are supplied by Schlager Industrieofenbau GmbH (Germany).
The Oil & Water Quenching tanks have a powerful agitation system. This ensures quicker cooling curves (during the quenching process), resulting in a material with extremely consistent mechanical characteristics.
And, with a quench delay of only 30 seconds and temperature uniformity of +/- 3 Celsius, they are without a doubt the most advanced Heat Treatment furnaces available anywhere in the world. As a result, Renine Metalloys is the market leader for heat-treated Stainless & Alloy Steels such as -
Stainless Steels - 304, 304L, 310S, 316/316L, 316H, 316TI, 317/317L, 321/321H, 904L etc
Nickel Alloys - Monel 400, Monel K500 | Inconel 600, 601, 617, 625, 718, X750 | Incoloy 800, 825, 900, 925 | Hastelloy C22, C276, B3, C2000 etc
Duplex Steel - UNS S31803, UNS 32205 etc
Alloy Steel - A234 WP5, A234 WP12, A234 WP22, A182 F5, A182 F12, A182 F22 etc
| Capacity: | 30 tons per batch |
| Material lengths: | upto 7.8 meters (26 foot) |
| Temperature Uniformity: | +/- 3°C |
| Quench Delay: | 30 seconds |
| Conforming to: | AMS 2750E, NORSOK, API-6A (NADCAP certification under process) |
| Quenching: | Equipped with two separate Oil & Water Quenching tanks (250,000 liters each) with Heat Exchanger and a very strong Agitation system. |
| Operating Temperature: | 480°C to 1130°C |
| Automation: | Equipped with fully-automatic operations from loading of hot rolled bar bundles upto stacking of finished Heat-treated bars |
| Capacity: | 60,000 tons per year |
| Capability: | QT - Oil Quenching & Tempering: QT 650, QT 700, QT 800, QT 900 etc QDT - Oil Quenching & Double Tempering HT - Hardening & Tempering (condition T) Precipitation Hardening & Ageing: HH1150, H1150M, H1050, H900 etc Annealing / Full Annealing Solution Annealing Spheroidizing Annealing Normalising |

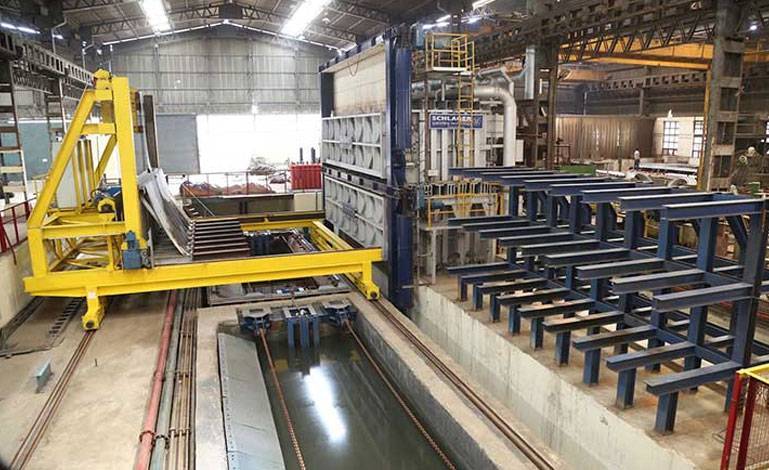

Water & Oil Quenching Tanks
Unloading of Heat-treated Material (at 1050° C)

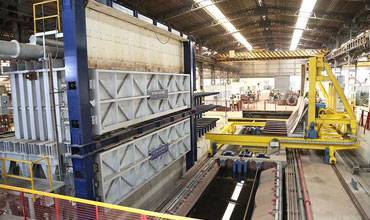

2 no’s Heat Treatment Furnaces
