What is Slip On Raised Face Flanges?

Slip on raised face flanges are circular flat discs with a hole in the middle. The purpose of these is to attach two pieces of pipe or tube together using bolts. They consist of four parts, a base ring which attaches to one piece of pipe, an integral raised face which provides stability and strength when connected, a hub which holds all the components together; and finally, gaskets which provide additional sealing.


Stainless Steel Slip On Flanges Stockist, Steel SORF Flanges, SS Raised Faced Slip-On Flanges Exporters, ASTM A182 Slip On Plate Flanges, Stainless Steel Raised Face SORF B16.5, Alloy Steel Industrial Raised Faced Slip On Flange (SORF) Wholesaler, ANSI B16.5 Slip on Raised Face, Carbon Steel Slip On Plate Flange Suppliers, ASME SA182 SS Pipe Flanges Distribution in Mumbai India.

The primary use for Slip on Raised Face Flanges is joining two pipes or tubes together securely and reliably. They are also used to alter flow direction within pipelines as well as providing access points for inspection and cleaning. Carbon Steel Slip On Raised Face Flanges can be used to connect sections of piping that have different diameters or thicknesses.


SORF Flange Class 150#, 300#, 600#, 900#, 1500#, 2500#, Hastelloy EN-1092 Slip-On Flanges Manufactures, SORF Flanges Dimensions, ASME 16.47 Inconel Slip On Flange (SORF) Flanges Traders, Forged Steel Slip-On 150 Raised Face Flange, Monel ANSI B16.5 Slip On Weld Flange Stockholder.

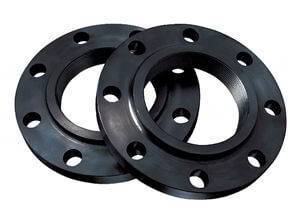

Slip On Raised Face Flanges

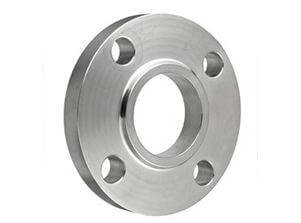

Slip On Raised Face Flanges

Slip on raised face flanges come in multiple different types depending on your specific needs, Blind Flange - These have no bore so they cannot be connected directly to another pipe but instead serve as blanking plates, Weld neck Flange - These have an extended neck that allows them to be welded directly onto another pipe or tube, Threaded Flange - These have threads cut into their circumference allowing them to be screwed onto fittings such as elbows or valves; Socket Weld Flange - These have a socket weld end allowing them to fit snugly over another fitting without welding it onto it. Weld Neck Raised Face Flanges, Blind Raised Face Flanges and many more grades are also available.

The main benefit that Slip On Raised Face Flanges bring is their ability to provide reliable connections between pipes and tubes quickly and easily with minimal effort required from installers. Furthermore, they give a wide range of pressure ratings ranging from low-pressure domestic plumbing applications up to high-pressure industrial applications ensuring you can find the right fit for any project you might need them for. Duplex Steel Slip On Raised Face Flanges are relatively inexpensive compared with other types making them a great option if you’re working with a tight budget. Different types of products are available, such as Hastelloy C22 Flanges, Waspaloy Discs, etc.

Alloy Steel Slip On Raised Face Flanges provide many advantages over other types due to their ease of installation, wide range of pressure ratings available, and affordability. Their primary use is joining two pipes together securely but they also make great options for altering flow direction within pipelines as well as providing access points for inspection and cleaning purposes or connecting sections with different diameters or thicknesses together with minimal effort required from installers.

Super Duplex Steel Slip On Raised Face Flanges, Stainless Steel Slip On Raised Face Flanges, SS Slip On Raised Face Flanges, Carbon Steel A105 SORF

What are the advantages of using slip-on raised face flanges?

The advantages of using slip-on raised face flanges include their ease of installation, low cost, & ability to handle low-pressure applications. They are also useful in situations where frequent assembly & disassembly is required, as they can be easily removed & reinstalled.

What is a slip-on raised face flange?

A slip-on raised face flange is a type of flange that is designed to slip over the end of a pipe and then be welded in place. The raised face provides a sealing surface for the gasket, which is placed between the flange faces. This type of flange is commonly used in low-pressure applications where the piping system is not subject to significant thermal expansion or contraction.

What are the standard sizes and ratings for slip-on raised face flanges?

Slip-on raised face flanges are typically available in a range of sizes, from 1/2 inch to 48 inches, & are rated for various pressure classes, such as 150, 300, 600, & 900. The size and rating of the flange will depend on the specific application & the requirements of the piping system.

Incoloy BS4504 Slip On Plate Flange, ANSI B16.48 Raised Faced Slip-On Flanges, Nickel Alloy ASTM B366 RF Slip-On Flanges, Slip-On Flanges Distributors, Raised Face flange, MSS SP44 Cupro Nickel Slip on Welding Flange (SOWF) Stockholders.

Slip On Raised Face Flanges (SORF Flange) Specification

Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings

Size : 1/2" (15 NB) to 48" (1200NB)

Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.

DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673

BS : BS4504 , BS4504, BS1560, BS10

Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Get Quote

Raised Faced Slip-On Flanges Materials and Grades

Stainless Steel Slip-On Flanges : ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L

Duplex & Super Duplex Steel Slip-On Flanges : ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61

Carbon Steel Slip-On Flanges : ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706

Low Temperature Carbon Steel Slip-On Flanges : ASTM A350, LF2, LF3

Alloy Steel Slip-On Flanges : ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91

Copper Alloy Steel Slip-On Flanges : ASTM SB 61 , SB62 , SB151 , SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200

Nickel Alloy Slip-On Flanges : ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020)

Price List of Slip-On Flanges

ASME B16.5 Slip On Flange Type Stainless Steel Slip On Flange Price in India Carbon Steel SORF Flange Price in Saudi Riyal Stainless Steel Slip On Flange Price in UAE Dirham
Flange 4" 150 RF Slip on CS A/ SA105 ASME B16.9 INR 674.55 SAR 35.26 AED 34.52
Flange 6" 300 RF Slip on CS A/ SA105 ASME B16.9 INR 1492.63 SAR 78.03 AED 76.39
Flange 12" 150 RF Slip on CS A/ SA105 ASME B16.9 INR 3283.07 SAR 171.62 AED 168.02
Flange 24" 150 RF Slip on CS A/ SA105 ASME B16.9 INR 12199.37 SAR 637.71 AED 624.34

Weight Chart of Pipe Flanges and Raised Faced Slip-On Flanges Temperature Ratings

Slip On Flange Weights by Pressure Class and Size
Pipe Size 150 # 300 # 600 # 900 # 1500 # 2500 #
WN SO BLD WN SO BLD WN SO BLD WN SO BLD WN SO BLD WN SO BLD
1/2" 2 1 1 2 1 1 2 2 2 SEE 1500 # WEIGHTS 5 4 4 7 7 7
3/4" 2 2 2 3 3 3 4 3 3 SEE 1500 # WEIGHTS 6 5 6 8 8 8
1" 3 2 2 4 3 3 4 4 4 SEE 1500 # WEIGHTS 9 8 8 12 11 11
1 1/2" 4 3 3 7 6 6 8 7 8 SEE 1500 # WEIGHTS 13 12 13 25 22 23
2" 6 5 5 9 7 8 12 9 10 SEE 1500 # WEIGHTS 25 25 25 42 37 39
2 1/2" 8 7 7 12 10 12 18 13 15 SEE 1500 # WEIGHTS 36 36 35 52 55 56
3" 10 8 9 15 13 16 23 16 20 31 26 29 48 48 48 94 83 86
4" 15 13 17 25 22 27 42 37 41 53 53 54 73 73 73 145 125 130
5" 19 15 20 32 28 35 68 63 68 86 83 87 130 130 140 245 210 225
6" 24 19 26 42 39 50 81 80 86 110 110 115 165 165 160 380 325 345
8" 39 30 45 67 58 81 120 115 140 175 170 200 275 260 300 580 485 530
10" 52 43 70 91 81 124 190 170 230 260 245 290 455 435 510 1075 930 1025
12" 80 64 110 140 115 185 225 200 295 325 325 415 690 580 690 1525 1100 1300
14" 110 90 140 180 165 250 280 230 355 400 400 520 940 NA 975 NA NA NA
16" 140 98 180 250 190 295 390 330 495 495 425 600 1250 NA 1300 NA NA NA
18" 150 130 220 320 250 395 475 400 630 680 600 850 1625 NA 1750 NA NA NA
20" 180 165 285 400 315 505 590 510 810 830 730 1075 2050 NA 2225 NA NA NA
22" 225 185 355 465 370 640 720 590 1000 NA NA NA NA NA NA NA NA NA
24" 260 220 430 580 475 790 830 730 1250 1500 1400 2025 3325 NA 3625 NA NA NA

Slip On Flange Size Chart

ANSI/ASME/ASA B16.5 150lb/sq.in. Flanges SO-RF
ø D b g m J h k Holes l Kg.
1/2" 88,9 11,1 34,9 30,2 22,3 15,9 60,3 4 15,9 0,400
3/4" 98,4 12,7 42,9 38,1 27,7 15,9 69,8 4 15,9 0,700
1" 107,9 14,3 50,8 49,2 34,5 17,5 79,4 4 15,9 0,800
1 1/4" 117,5 15,9 63,5 58,8 43,2 20,6 88,9 4 15,9 1,100
1 1/2" 127,0 17,5 73,0 65,1 49,5 22,2 98,4 4 15,9 1,400
2" 152,4 19,0 92,1 77,8 62,0 25,4 120,6 4 19,0 2,200
2 1/2" 177,8 22,2 104,8 90,5 74,7 28,6 139,7 4 19,0 3,600
3" 190,5 23,8 127,0 107,9 90,7 30,2 152,4 4 19,0 4,100
3 1/2" 215,9 23,8 139,7 122,2 103,4 31,7 177,8 8 19,0 5,200
4" 228,6 23,8 157,2 134,9 116,1 33,3 190,5 8 19,0 5,600
5" 254,0 23,8 185,7 163,6 143,8 36,5 215,9 8 22,2 6,300
6" 279,4 25,4 215,9 192,1 170,7 39,7 241,3 8 22,2 7,500
8" 342,9 28,6 269,9 246,1 221,5 44,4 298,4 8 22,2 12,600
10" 406,4 30,2 323,8 304,8 276,3 49,2 361,9 12 25,4 18,500
12" 482,6 31,7 381,0 365,1 327,1 55,6 431,8 12 25,5 28,000
14" 533,4 34,9 412,7 400,0 359,1 57,1 476,2 12 28,6 36,000
16" 596,9 36,5 469,9 457,2 410,5 63,5 539,7 16 28,6 46,000
18" 635,0 39,7 533,4 504,8 461,8 68,3 577,8 16 31,7 50,000
20" 698,5 42,9 584,2 558,8 513,1 73,0 635,0 20 31,7 64,000
22" 749,3 46,0 641,2 609,6 564,4 79,4 692,1 20 34,9 72,000
24" 812,8 47,6 692,1 663,6 615,9 82,5 749,3 20 34,9 89,000

Slip On Flange Weight Chart

Rated Diameter O.D. of Pipe Flange Parameter Neck Size Size of R.F. Bolts Approx. Weight
DN d1 D d5 b k h d3 r d4 f No. of
holes
d2 KG
10 17.2 90 17.7 14 60 20 30 4 40 2 4 14 0.56
15 21.3 95 22 14 65 20 35 4 45 2 4 14 0.62
20 26.9 105 27.6 16 75 24 45 4 58 2 4 14 0.91
25 33.7 115 34.4 16 85 24 52 5 68 2 4 14 1.09
32 42.4 140 43.1 16 100 26 60 5 78 2 4 18 1.58
40 48.3 150 49 16 110 26 70 5 88 3 4 18 1.76
50 60.3 165 61.1 18 125 28 85 5 102 3 4 18 2.39
65 76.1 185 77.1 18 145 32 105 5 122 3 4 18 3.1
80 88.9 200 90.3 20 160 34 118 5 138 3 8 18 3.77
100 114.3 220 115.9 20 180 38 140 5 158 3 8 18 4.29
125 139.7 250 141.6 22 210 40 168 5 188 3 8 18 5.86
150 168.3 285 170.5 22 240 44 196 5 212 3 8 22 7.22
175 193.7 315 196.1 24 270 44 224 6 242 3 8 22 9.18
200 219.4 340 222 24 295 44 247 6 268 3 8 22 9.95
250 273 395 276 26 350 46 300 6 320 3 12 22 12.69
300 323.9 445 327 26 400 46 352 6 370 4 12 22 14.4
350 355.6 505 359 26 460 53 398 10 430 4 16 22 22.36
400 406.4 565 410 26 515 57 448 10 482 4 16 26 26.85
450 457 615 461 28 565 62 502 10 532 4 20 26 32.53
500 508 670 512 28 620 67 552 10 585 4 20 26 37.84
600 610 780 614 28 725 75 658 10 685 5 20 30 49.32
700 711 895 716 30 840 77 760 10 800 5 24 30 63.86
800 813 1015 818 32 950 84 864 10 905 5 24 33 85.19
900 914 1115 920 34 1050 88 969 10 1005 5 28 33 101.4
1000 1016 1230 1022 34 1160 92 1071 10 1110 5 28 36 119.7

ASME B16.5 Raised Face Flanges Pressure Ratings

Flanges pressure rating in psig for Raised Face Flange ASME
Temperature (F°) 150# 300# 400# 600# 900# 1500# 2500#
-20 to 100 285 740 985 1480 2220 3705 6170
200 260 680 905 1360 2035 3395 5655
300 230 655 870 1310 1965 3270 5450
400 200 635 845 1265 1900 3170 5280
500 170 605 805 1205 1810 3015 5025
600 140 570 755 1135 1705 2840 4730
650 125 550 730 1100 1650 2745 4575
700 110 530 710 1060 1590 2655 4425
750 95 505 675 1015 1520 2535 4230
800 80 410 550 825 1235 2055 3430
850 65 320 425 640 955 1595 2655
900 50 230 305 460 690 1150 1915
950 35 135 185 275 410 685 1145
1000 20 85 115 170 255 430 715

ASME B16.5 SS RF Flange 900 LB Dimensions Tolerance

Nominal Pipe Size NPS (inches) Class 900
Diameter of Flange (inches) No. of
Bolts
Diameter of Bolts (inches) Diameter of Bolt Holes (inches) Bolt Circle (inches)
1/2 4-3/4 4 3/4 0.88 3-1/4
6 15 12 1-1/8 1.25 12-1/2
1 5-7/8 4 7/8 1 4
1-1/4 6-1/4 4 7/8 1 4-3/8
1-1/2 7 4 1 1.12 4-7/8
2 8-1/2 8 7/8 1 6-1/2
2-1/2 9-5/8 8 1 1.12 7-1/2
3/4 5-1/8 4 3/4 0.88 3-1/2
3 9-1/2 8 7/8 1 7-1/2
4 11-1/2 8 1-1/8 1.25 9-1/4
14 25-1/4 20 1-1/2 1.62 22
5 13-3/4 8 1-1/4 1.38 11
8 18-1/2 12 1-3/8 1.5 15-1/2
10 21-1/2 16 1-3/8 1.5 18-1/2
12 24 20 1-3/8 1.5 21
16 27-3/4 20 1-5/8 1.75 24-1/2
24 41 20 2-1/2 2.62 35-1/2
18 31 20 1-7/8 2 27
20 33-3/4 20 2 2.12 29-1/2
