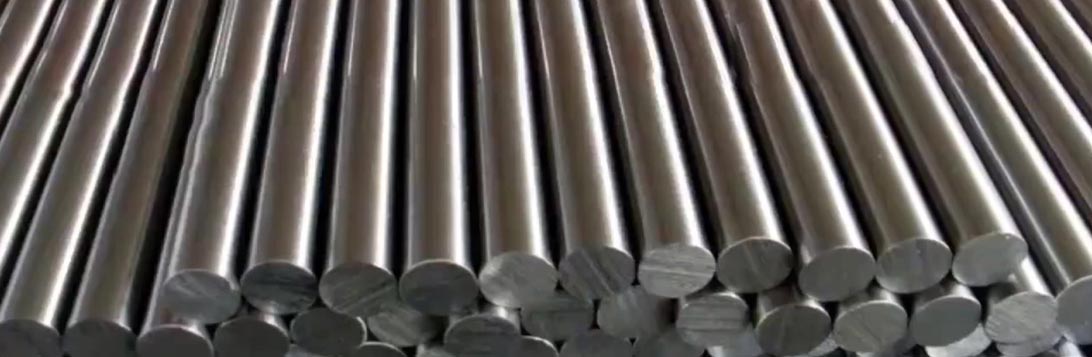

Monel Bars in Kentucky
Monel Bars, Monel Round Bars in Kentucky, Monel Rods, Monel Alloy Bars, Monel Flat Bars in Kentucky, ASTM B164 Monel Bars Stockist in Kentucky, Monel Bars Supplier in Kentucky
Renine Metalloys is a leading supplier and exporter of Monel Bars in Kentucky. We serve industries requiring hard, corrosion resistant bars that endure harsh conditions. Monel Bars are produced from a nickel-copper alloy renowned for its durability particularly in marine and chemical environments. These bars are resistant to rust, acids, and high-pressure systems. They are widely applied in pumps, valves, heat exchangers, and fasteners.
We supply Monel Bars in two common grades—Monel 400 and Monel K500. Monel 400 is great for corrosion resistance, while K500 offers higher strength and hardness. The bars are available in different types like round, square, hex, flat, rectangular, hollow, and threaded. Sizes range from 1/2″ to 24″ in random, fixed, or cut lengths to fit your requirements. Manufactured as per ASTM B164 and B111 specifications and available in several finishes, including black, bright polished, rough turned, and matte.
We’re ISO certified and make sure every bar is inspected and tested prior to shipping. Some of the tests include hardness, tensile strength, visual examination, impact resistance, and pressure testing. We perform full material inspections as well. As one of the leading monel bars exporters in Kentucky, we ensure products meet international standards such as EN, DIN, JIS, ASTM, BS, ASME, and AISI. With each shipment, test reports and material certificates are provided. Depending on the order, we utilize bubble wrap, bundles, or wooden boxes to ship bars.
Monel Bars Specification in Kentucky
| Specifications | Details |
| Specifications | ASTM B164 / ASTM SB164, ASTM B165 / ASTM SB165. |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Size | 5 mm to 500 mm |
| Diameter | 0.1 mm to 100 mm |
| Length | 100 mm to 3000 mm and above |
| Finish | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Tolerance | H8, H9, H10, H11, H12, H13, K9, K10, K11, K12 or as per client’s requirements |
| Form | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging, etc. |
| Grade | Monel 400 Round Bars UNS (N04400), DIN (2.4360), Monel K500 Round Bars UNS (N05500), DIN (2.4375) |
Reach Out – We’re Happy to Help!
Feel Free to connect with us. Our team is ready for a handful of support
Types of Monel Bars in Kentucky
Round Bar
Monel Round Bar in Kentucky
Square Bars
Monel Square Bar in Kentucky
Hex Bars
Monel Hex Bar in Kentucky
Flat Bars
Monel Flat Bar in Kentucky
Forged Bars
Monel Forged Bar in Kentucky
Bright Bars
Monel Bright Bar in Kentucky
Monel Bars Equivalent Grades In Kentucky
| STANDARD | UNS | WNR. | AFNOR | EN | JIS | BS | GOST |
| Monel 400 | N04400 | 2.4360 | NU-30M | NiCu30Fe | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 |
| Monel K500 | N05500 | 2.4375 | – | – | – | – | – |
Monel Bars Chemical Composition In Kentucky
| Grade | Ni | C | Al | Mn | Si | Fe | Cu | S |
| Monel 400 | 63.0 min | 0.3 max | 0.50 max | 2.0 max | 0.5 max | 1.0 – 2.5 | 28.0 – 34.0 | 0.02 max |
| Monel K500 | 63.00 min | 0.25 max | – | – | 0.5 max | 0.5 – 2 | 27.00 – 33.00 | 0.010 max |
Monel Bars Mechanical Properties Kentucky
| Density | Melting Point | Yield Strength (0.2% Offset) | Tensile Strength | Elongation |
| 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 35,000 , MPa – 240 | Psi – 80,000 , MPa – 550 | 40 % |
| 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 115000 , MPa – 790 | Psi – 160000 , MPa – 1100 | 20 % |
