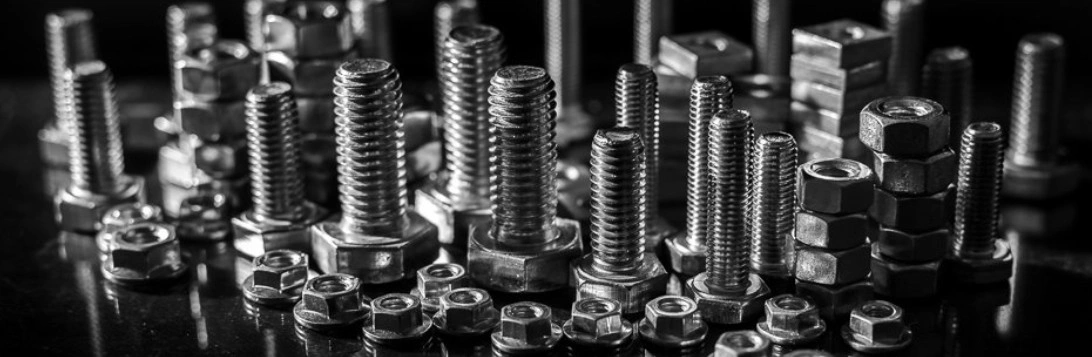

Monel Fasteners in Houston
Monel Fasteners Supplier in Houston, Monel Fasteners in Houston, ASTM F467 Monel Alloy Fasteners Stockist in Houston
Renine Metalloys is a reliable Monel Fasteners exporter and supplier in Houston, known for consistent quality and reliable service. We supply tough, corrosion-resistant fasteners that perform well in adverse conditions.
Monel Fasteners are produced from a nickel-copper alloy that is resistant to corrosion from alkalis, acids, and saltwater. They are widely applied in marine, chemical and oil & gas industries. The fasteners are ideal for pressure vessels, heat exchangers, valves, and pumps. We are an ISO-certified company and ensure to follow international standards. We provide two primary grades—Monel 400 and Monel K500—each suited for different performance needs.
Produced according to ASME SF467 and ASTM F467 standards. Sizes from M2 to M160, lengths from 3 mm to 200 mm. Offered in forms like bolts, nuts, washers, screws, stud bolts, and anchor fasteners in standard and custom sizes for individual project requirements. Monel 400 fasteners are highly corrosion-resistant with good strength. Monel K500 features additional hardness and is applied where higher mechanical strength is required.
Our fasteners are known for their long life, resistance to pitting and cracking, and performance in extreme temperatures. They’re non-magnetic and retain their shape and strength under stress. These features make them reliable even in high-pressure or corrosive systems.
We supply products that follow IS, ASTM, BS, and all major global standards. Orders are packed securely in pallets, cartons, or boxes, based on your request. We test our fasteners for hardness, tensile strength, pressure tolerance, impact, and appearance. Material inspections ensure consistency and quality.
Each shipment comes with key documents like raw material certificates, EN 10204/3.1B, and full radiography test reports. We provide strong customer support and timely delivery to all locations in Houston.
Monel Fasteners Specification
| Property | Details |
|---|---|
| Material | Monel Fasteners |
| ASTM / ANSI | ASME SF467 / ASTM F467 |
| Grades |
Monel 400 Fasteners Monel K500 Fasteners |
| Size | M2 – M160 |
| Threads | BSW, METRIC, UNF, UNC, BSF, or as required |
| Length | 3 mm to 200 mm |
| Other Sizes | M30, M10, M20, M3, M5, M12, M8, M4, M16, M14, M24, M6, M2, M2.5, M36 etc. |
| Types | Hex Bolt, Screw, Stud Bolt, Bolt, Eye Bolt, Nut, Washer, U Bolt, Threaded Bolt Etc. |
Reach Out – We’re Happy to Help!
Feel Free to connect with us. Our team is ready for a handful of support
Types of Monel Fasteners in Houston
Bolt
Monel Bolt in Houston
Nuts
Monel Nut in Houston
Screw
Monel Screws in Houston
Washer
Monel Washer in Houston
Stud Bolt
Monel Stud Bolts in Houston
Anchor Bolt
Monel Anchor Bolts in Houston
Monel Fasteners Equivalent Grades in Houston
| Standard | WERKSTOFF NR. | UNS | JIS | AFNOR | BS (British) | GOST (Russia) | EN / DIN |
|---|---|---|---|---|---|---|---|
| Monel 400 | 2.4360 / 2.4361 | N04400 | NW 4400 | NU-30M | NA 13 | МНЖМц 28-2,5-1,5 | NiCu30Fe |
| Monel K500 | 2.4375 | N05500 | — | — | — | — | — |
Monel Fasteners Chemical Composition in Houston
| Alloy | Nickel (Ni) | Copper (Cu) | Iron (Fe) | Manganese (Mn) | Carbon (C) | Silicon (Si) | Aluminum (Al) | Titanium (Ti) |
| Monel 400 | ≥63% | 28–34% | ≤2.5% | ≤2.0% | ≤0.3% | ≤0.5% | — | — |
| Monel K500 | ≥63% | 27–33% | ≤2.0% | ≤1.5% | ≤0.25% | ≤0.5% | 2.3–3.15% | 0.35–0.85% |
Monel Fasteners Mechanical Properties in Houston
| Alloy | Melting Point | Density | Yield Strength (0.2% Offset) | Tensile Strength | Elongation |
| Monel 400 | 1300–1350 °C (2370–2460 °F) | 8.8 g/cm³ | Psi – 35,000 , MPa – 241 | Psi – 85,000 , MPa – 586 | 30% |
| Monel K500 | 1315–1350 °C (2400–2460 °F) | 8.44 g/cm³ | Psi – 115,000 , MPa – 793 | Psi – 160,000 , MPa – 1103 | 15–20% |
